The Best Solar Submersible Water Pumps of 2026

Most solar submersible pump articles online treat the topic like a green energy brochure. They tell you solar pumps are sustainable, eco friendly, and good for the environment, and then list a few Amazon products. They never tell you how to actually size one for your well.

This guide is written by a borehole driller whose company installs solar pump systems. You will get the Total Dynamic Head math, sun hour calculations for the US, and six pumps worth installing today. If you skip the sizing section, you will probably buy a pump that cannot lift water to your tank in February.

This article may contain affiliate links, and we may earn a commission from purchases made through those links. For more information, please refer to our disclosure.

📬 Get New Guides by Email

Want new sizing and troubleshooting guides as they go live? One email per new guide, written by a working driller.

Join the Newsletter →
Steel frame for a solar array that will power a borehole pump
Solar array frame going up for a borehole pump, on a Bonvic Drilling job in Kenya.
What to know
  • Size the pump by total dynamic head (lift plus pipe friction) and your winter sun hours, not by panel wattage.
  • Best overall here: Grundfos 10 SQFlex (up to 820 ft of head). Budget deep well pick: BACOENG solar deep well pump (230 ft).
  • Helical rotor pumps suit deep, low flow wells; multi stage centrifugal pumps suit shallower, higher flow jobs.

Top Picks at a Glance

If you want the recommendation and the link, this table is for you. The sizing math and detailed reviews are below.

Best ForPumpMax TDHBuy
Best OverallGrundfos 10 SQFlex820 ftCheck Price →
Best Mid RangePWS Solar Pump with MPPT260 ftCheck Price →
Best Budget Deep WellBACOENG Solar Deep Well230 ftCheck Price →
Best Budget ShallowEco-Worthy Solar Pump230 ftCheck Price →
Best High FlowSHYLIYU Solar Submersible330 ftCheck Price →
Best Pond / SurfaceSolariver Solar Pump Kit30 ftCheck Price →

What a Solar Submersible Pump Is

A solar submersible pump is a DC powered pump that sits in your well and runs on direct current from solar panels. There is no grid connection, no generator, and usually no batteries. When the sun comes up, the pump runs, in the same general principle the Department of Energy uses to describe direct solar applications.

That last sentence sounds simple but contains the whole challenge of these systems. Pump output rises and falls with sun intensity throughout the day. At sunrise, the pump turns over slowly. At noon it runs at full capacity. At sunset it shuts off until tomorrow.

Your storage tank or cistern is what makes this work for daily living. The pump fills the tank during sun hours, and your house or livestock draws from the tank the rest of the time. You are not pumping on demand. You are pumping into reserve.

The Sizing Math

Three numbers determine whether a solar pump will work for your property. Total Dynamic Head, daily water requirement, and peak sun hours. Get any one of them wrong and the pump will not deliver.

Total Dynamic Head (TDH)

TDH is the total vertical distance the pump must lift water, plus all the resistance along the way. It is measured in feet. Most homeowners confuse it with well depth, which is only part of the equation.

TDH = Vertical Lift + Outlet Pressure + Friction Losses

Vertical lift is the distance from the pumping water level (not the static level) up to the storage tank or outlet. Outlet pressure converts to head at 2.31 feet per PSI, so 40 PSI equals 92 feet of head. Friction losses in your pipe add 1 to 10 feet depending on pipe size, length, and flow rate.

Daily Water Needs by Application

You cannot size a pump until you know how many gallons per day you need to deliver. Use the following ranges as a starting point, drawn from the EPA private well guidance and standard livestock husbandry figures.

ApplicationDaily Water Need
One person residential use80 to 100 gallons
Family of four320 to 400 gallons
One horse or beef cow10 to 15 gallons
One dairy cow in lactation25 to 40 gallons
20 chickens6 to 10 gallons
1 acre vegetable garden (peak season)1,000 to 3,000 gallons
1 acre alfalfa irrigation5,400 gallons

Peak Sun Hours by US Region

Solar panels do not produce constant power. They produce the equivalent of full power for a number of hours per day, called peak sun hours. That number varies by region and season.

📊 Peak Sun Hours per Day (Winter Average)

Phoenix, AZ
6.0 hours
Los Angeles, CA
5.4 hours
Denver, CO
4.9 hours
Atlanta, GA
4.4 hours
Chicago, IL
3.4 hours
Seattle, WA
2.5 hours

Pacific Northwest installs need almost double the panel wattage of Arizona installs to deliver the same daily output. Check your exact location at the NREL PVWatts Calculator.

Daily Output Formula

Daily Gallons = Pump GPM × Sun Hours × 60 × 0.70

The 0.70 multiplier accounts for real world losses from cloud cover, panel angle, and dust. If your panels are tilted optimally and clean, you can use 0.80. If they are flat mounted on a roof or in a dusty location, use 0.60.

Worked Example: Sizing a Pump for a Real Property

The Anderson homestead: family of four plus a small garden in Colorado. They need 500 gallons per day. Their well is 220 feet deep with a pumping water level of 105 feet. They want to fill an 8 foot tall storage cistern, no pressure required.

Step 1: Calculate TDH. Vertical lift is 105 + 8 = 113 feet. Outlet pressure is 0 PSI (gravity fed cistern). Friction loss in 1.25 inch pipe at 3 GPM over 60 feet is about 3 feet. TDH = 113 + 0 + 3 = 116 feet.

Step 2: Calculate required GPM. Daily need is 500 gallons. Denver winter sun hours is 4.9. Pump GPM = 500 ÷ (4.9 × 60 × 0.70) = 2.4 GPM.

Step 3: Add safety margin. Target a pump delivering at least 3.5 GPM at 120 feet of TDH. That gives 30 percent headroom for cloudy weeks and growing demand.

Step 4: Select pump. A Grundfos 11 SQF-2, a PWS 7.7 GPM 24V pump, or a properly sized BACOENG unit all hit this target. Match the pump to a 320 to 600 watt solar array with an MPPT controller.

🔧 Size for Winter, Not Summer

A solar pump that fills a stock tank by noon in July can fall far short in November. Take a 24V centrifugal pump rated at 5 GPM on 200 watts of flat mounted panels at a northern site with about 2.8 peak sun hours in winter.

Forty head of cattle need around 600 gallons a day, but in November that system may deliver less than half of it. Nothing is broken; it was sized for summer output.

Adding panel capacity and tilting the array steeper for the low winter sun are the usual fixes. In the northern half of the country, size for winter sun hours, not the annual average.

Helical Rotor vs Multi Stage Centrifugal: Which to Pick

Solar submersibles come in two engineering families, and the difference matters more than the brand name. Pick the wrong family and no amount of panel wattage will fix the performance.

Helical Rotor (Screw Pumps)

Helical rotor pumps use a single threaded rotor inside a rubber stator, pushing water up like a screw. They are positive displacement, meaning they deliver consistent flow at any RPM. This makes them ideal for deep wells (over 200 feet) and for cloudy conditions where the pump runs at partial speed.

Examples in this guide: Grundfos 10 SQFlex (in the larger SQ models). These cost more, between $2,500 and $5,000 for the pump alone.

Choose helical if: well is over 200 feet deep, daily output target is low to medium (1 to 5 GPM), location has fewer than 5 peak sun hours in winter.

Multi Stage Centrifugal

Centrifugal pumps use a stack of impellers that spin water outward at high RPM. Output rises quickly with RPM, then drops off above the rated TDH. They are cheaper, simpler to repair, and deliver higher flow rates than helical pumps.

Examples in this guide: PWS, BACOENG, Eco-Worthy, SHYLIYU. These run $200 to $1,200 depending on size and quality.

Choose centrifugal if: well is under 250 feet deep, daily output target is medium to high (5 to 15 GPM), location has 5 or more peak sun hours, budget is tight.

The 6 Best Solar Submersible Pumps for 2026

Here are the six pumps worth considering, organized by use case. Each one earns its spot for a specific reason.

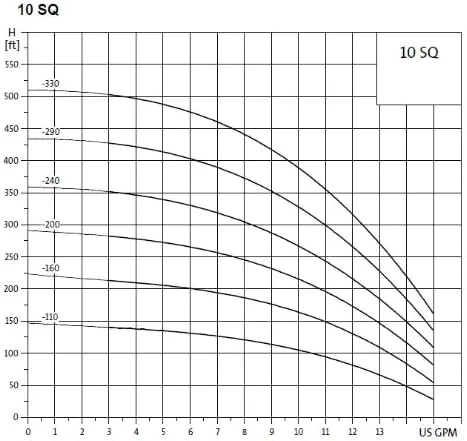

1. Grundfos 10 SQFlex (Best Overall)

Type:Multi stage centrifugal
Max TDH:820 feet (with right panel setup)
Max Flow:10 GPM at low head
Voltage:30 to 300 V DC or 90 to 240 V AC
Material:Stainless steel housing and impellers
Warranty:2 years (extended to 5 with Grundfos installer)

The Grundfos SQFlex line is the gold standard for solar submersible pumps in the US market. The 10 SQFlex accepts solar, wind, generator, or grid input on the same controller, which is a real feature if you have any backup plans. Stainless steel construction means saltwater air, iron rich groundwater, or sand will not eat the pump in five years.

The built in soft start and dry run protection are not marketing fluff. The pump ramps up smoothly at sunrise without stalling, and shuts off if your well draws down past the intake.

The downsides are real. It costs three to four times what an Amazon brand costs, and the proprietary CU200 controller is required for full functionality. If your budget will not stretch, look at the PWS pick below.

Buy it if: your well is deep, your usage is critical, and you want a pump that lasts 15 years instead of 5.

Check Grundfos 10 SQFlex Price on Amazon →

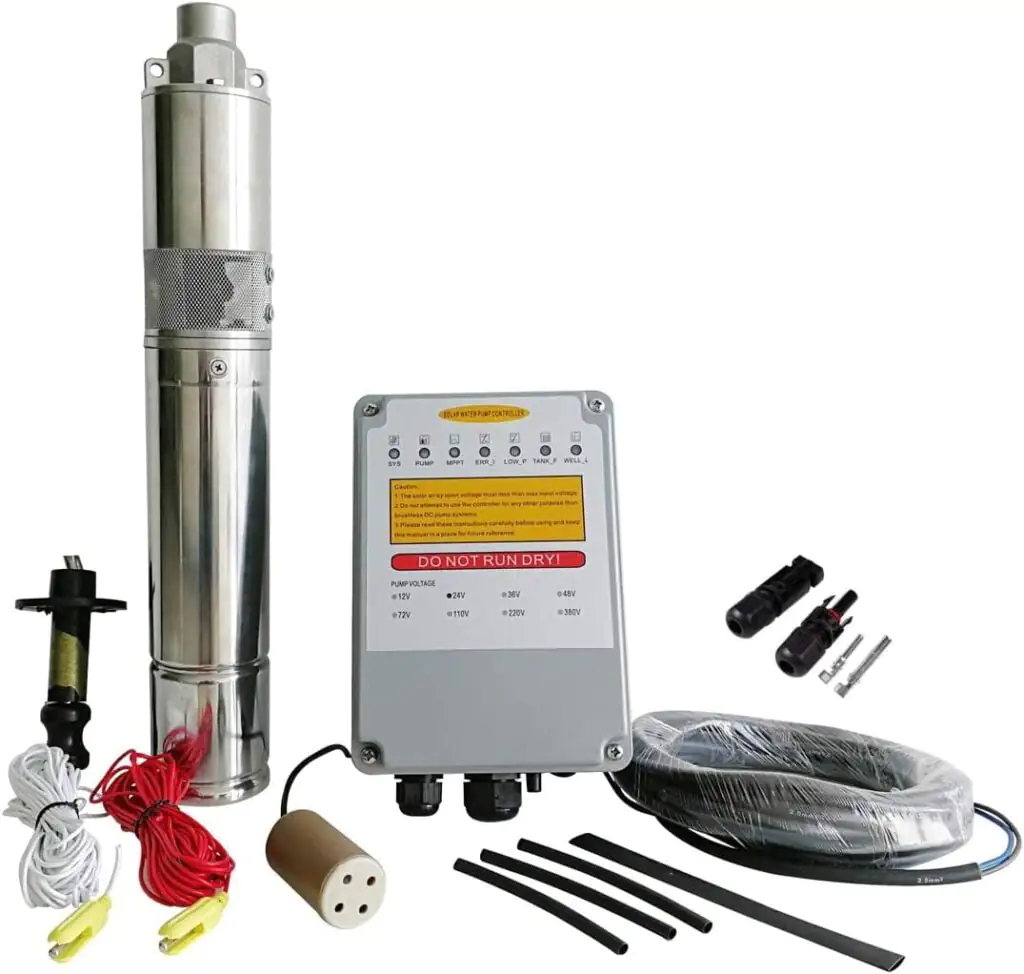

2. PWS Solar Pump with MPPT Controller (Best Mid Range)

Type:Brushless DC centrifugal
Max TDH:260 feet
Max Flow:7.7 GPM
Voltage:24V DC (battery compatible)
Material:316 stainless steel
Warranty:3 years

The PWS pump is what I recommend for most US homesteaders shopping the mid budget range. It ships with an MPPT controller already integrated, which adds 15 to 30 percent more output from the same solar panels compared to direct connection. Water shortage sensors prevent dry running and the auto shutoff stops the pump when your tank is full.

At 7.7 GPM and 260 feet of TDH, this pump handles a typical 100 to 200 foot residential well with capacity to spare. It accepts battery backup if you want the option to pump at night, which is useful for irrigation timing.

The brushless motor design means there are no carbon brushes to replace. The 316 stainless body resists corrosion in most groundwater chemistries. Real downside: the documentation is sparse, so plan to figure out the wiring yourself.

Buy it if: you want professional features without the Grundfos price tag, and your well is under 250 feet.

Check PWS Solar Pump Price on Amazon →

🔧 Why Direct Wiring Costs You Water

A pump wired straight to the panels, with no controller, pulls the panels off their maximum power point as the load rises. A 5 GPM pump on 400 watts of panels can deliver well under its rated flow even at noon on a clear day.

An MPPT controller keeps the panels at their best operating point and typically recovers 15 to 30 percent of daily output for a modest cost.

Treat MPPT as part of the system, not an optional extra. A direct wire kit leaves output on the table for the life of the pump.

3. BACOENG Solar Deep Well Pump (Best Budget Deep Well)

Type:Multi stage centrifugal
Max TDH:230 feet
Max Flow:5.3 GPM
Voltage:24V or 48V DC
Material:Stainless steel
Warranty:1 year

BACOENG is the budget pick for ranchers and cabin owners. The pump is a competent multi stage centrifugal in stainless steel, and the included cooling jacket helps in shallow installations where the motor sits in still water. Output is honest at 5.3 GPM down to about 100 feet TDH, falling to roughly 2 GPM near the 230 foot maximum.

What you give up at this price point: a controller is sold separately or as a cheap add on, the documentation is thin, and the warranty is short. It is a budget pump, so I would not put one in a critical, municipal style system.

Pair it with a proper MPPT controller and 24V or 48V panel array sized to your sun region. Do not run it direct.

Buy it if: you have a cabin, off grid stock tank, or backup well system where occasional downtime is tolerable.

Check BACOENG Pump Price on Amazon →

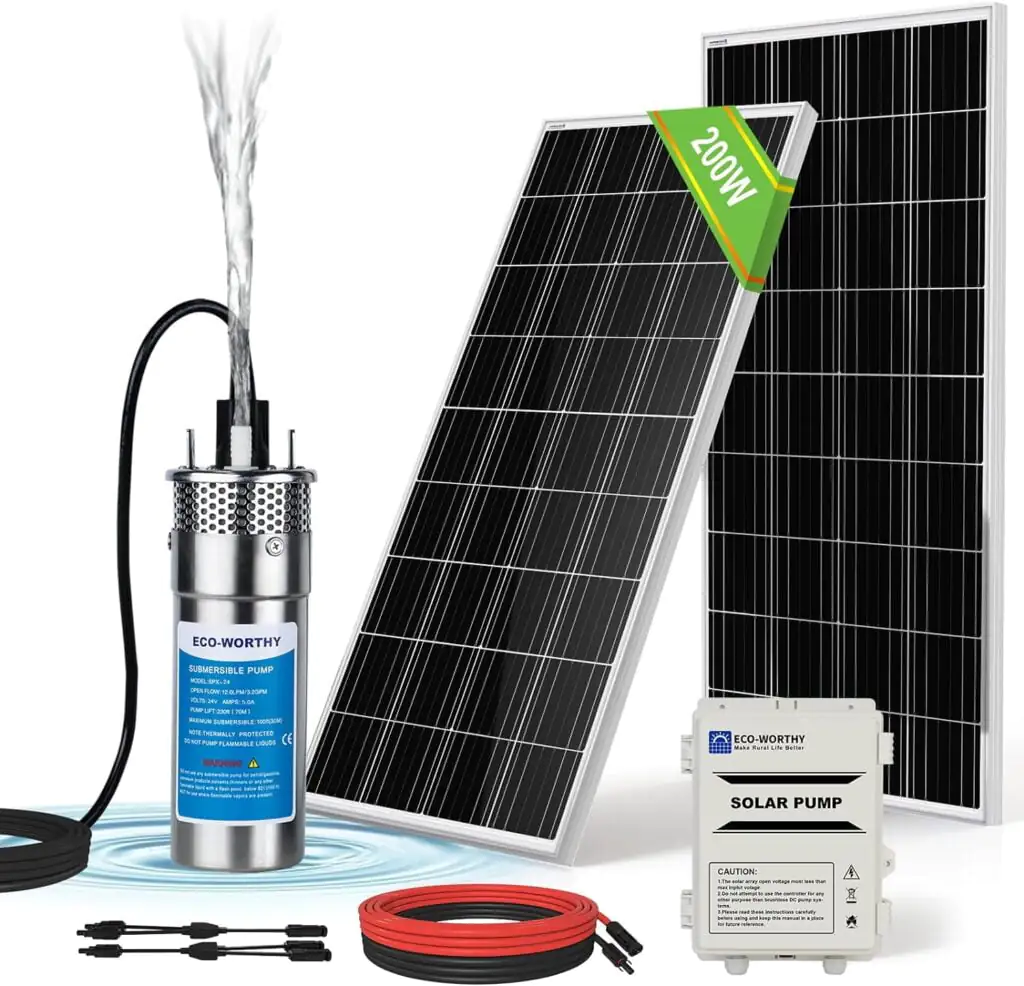

4. Eco-Worthy Solar Submersible Pump (Best Budget Shallow)

Type:Brushless DC centrifugal
Max TDH:230 feet
Max Flow:5.3 GPM
Voltage:24V DC
Material:Stainless steel
Warranty:2 years

Eco-Worthy is the budget brand that has earned the most goodwill in this category through consistent quality at a low price. Their solar submersible is a brushless DC centrifugal in stainless steel, with a sealed motor housing and a basic but functional controller included.

At 5.3 GPM and 230 feet of TDH on paper, real world performance is closer to 4 GPM at 150 feet TDH with typical panel sizing. That still covers most shallow to mid depth wells comfortably.

The biggest weakness is the controller, which lacks true MPPT functionality and is barely better than direct connection. Replace it with a 60 dollar MPPT controller and the pump delivers 25 to 30 percent more daily output.

Buy it if: you need a quick, affordable solar pump for a shallow well, garden irrigation, or cabin use, and you do not mind upgrading the controller.

Check Eco-Worthy Pump Price on Amazon →

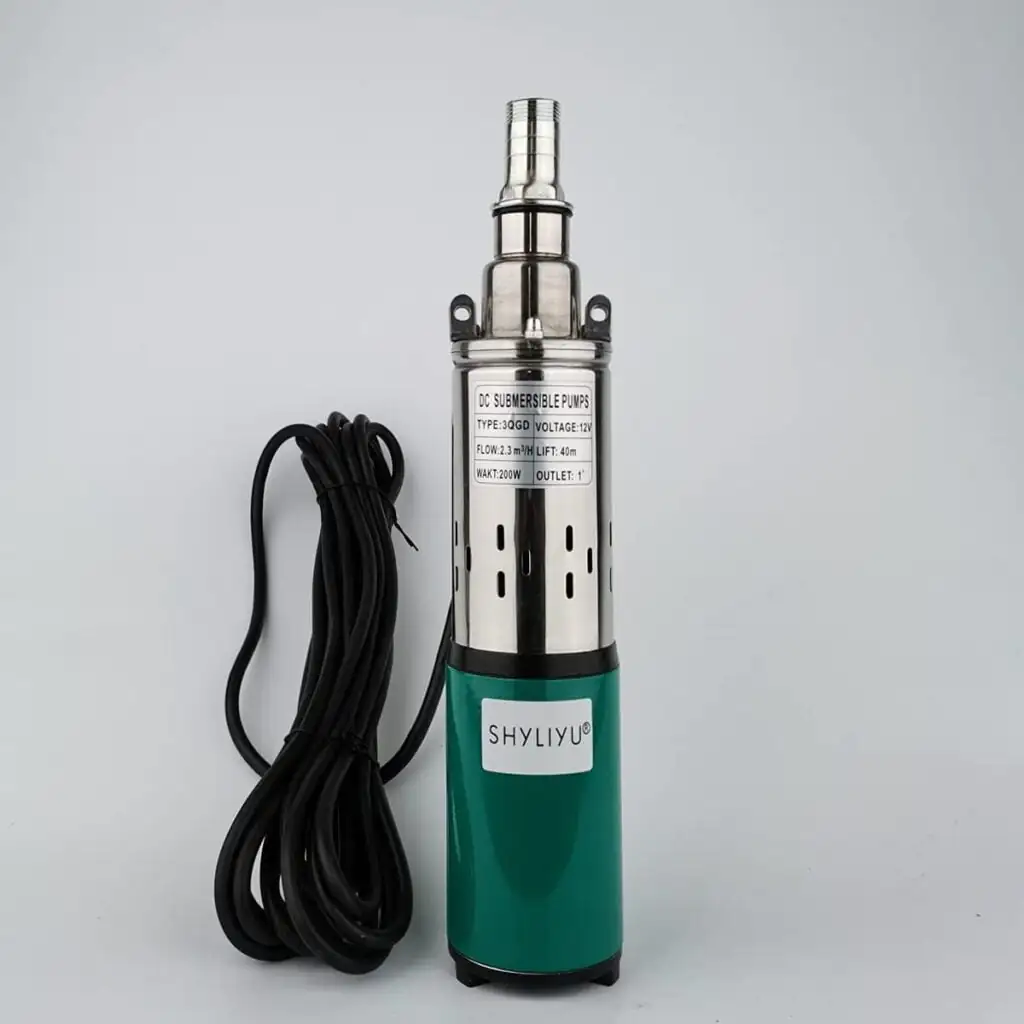

5. SHYLIYU Solar Submersible Pump (Best High Flow)

Type:Brushless DC centrifugal
Max TDH:330 feet
Max Flow:10 GPM
Voltage:48V or 72V DC
Material:Stainless steel
Warranty:1 year

The SHYLIYU is the better pick when you need higher flow rates than the BACOENG can deliver. At 10 GPM peak output, it can fill a 1,500 gallon storage tank in three sun hours. For livestock operations or larger irrigation systems, that flow rate matters.

The 48V or 72V configuration requires more panels (typically 720 to 1080 watts), but the higher voltage reduces resistance losses in long wire runs from panels to pump. Brushless motor design extends service life beyond cheaper brush motor units.

Quality is real but documentation is in halting English. Expect to call US based solar pump forums for installation troubleshooting, not the manufacturer. Pair with a proper MPPT controller.

Buy it if: you have a high daily water requirement (1,000 plus gallons), are within 250 feet TDH, and have the budget for the larger panel array required.

Check SHYLIYU Pump Price on Amazon →

6. Solariver Solar Water Pump Kit (Best Pond / Surface)

Type:Brushless centrifugal (low flow)
Max TDH:30 feet
Max Flow:3 GPM
Voltage:12V DC
Material:Plastic body, stainless impeller
Warranty:1 year

The Solariver is in a different category than the other five pumps. This is not a deep well pump. It is a complete kit for moving water from a shallow source (pond, rain barrel, surface water) to a slightly higher destination.

At 3 GPM and 30 feet of TDH, it is right sized for ornamental ponds, small garden irrigation from a rain catchment, hydroponic setups, and livestock troughs fed from a surface tank. Do not buy this for a real well.

The kit ships with a panel, mounting hardware, and tubing, which makes it the easiest install in this guide. Plug, drop in water, point panel at sun.

Buy it if: your water source is a pond, stream, rain barrel, or other surface water at less than 30 feet of total lift.

Check Solariver Kit Price on Amazon →

What to Avoid

Some categories of solar pump that get heavy promotion in this niche but do not earn a spot in a real installation:

  • 12V “deep well” pumps under $100. These are aquarium grade brushed motor units repackaged with deep well marketing. Real submersible deep well pumps cost $200 or more for a reason. The motor windings are not built for 8 hours of daily operation.
  • Pumps without dry run protection. Solar pumps that draw down the well and keep running burn out their bearings in days, not years. Any pump over $300 should include this feature.
  • Direct connect kits without MPPT controllers. You leave 25 to 30 percent of your panel output on the table for the life of the system. A 60 dollar controller pays back in 60 days.
  • Pumps with plastic impellers for sandy water. In high silt wells, plastic wears out in under a year. Insist on stainless steel impellers if your well water carries any sediment.

Installation: What You Can DIY

Installing a solar submersible pump is more involved than a grid powered pump because of the panel array, controller wiring, and pump rope work. That said, most rural homeowners can do it themselves over a long weekend.

You Can DIY If:

  • You can mount or assemble a ground level solar array (or already have one).
  • You can splice waterproof underwater cable to the pump motor leads.
  • You have a way to lower 100 plus feet of pump and pipe into the well, ideally a tripod and pulley.
  • You can read a basic wiring diagram and tell DC positive from DC negative.

Call a Professional If:

  • Your well is deeper than 300 feet (heavy lift, real safety issue).
  • You need a permit for the solar array in your jurisdiction.
  • The pump is replacing a grid powered submersible and the existing pitless adapter is suspect.
  • You want a hybrid solar plus grid system with automatic switching.

💬 Stuck on Your Solar Pump Sizing?

Send me your well depth, daily water need, and zip code. I will tell you what pump and panel setup fits.

Contact Me →

Five Common Solar Pump Failure Modes

Solar submersibles fail in different ways than grid powered pumps. Here are the most common failures and how to spot them early.

1. Dry Run Bearing Burnout

Symptom: pump runs but no water comes out, motor sounds normal at first.

Cause: well draws down past the intake, pump runs in air for hours, bearings overheat.

Fix: install a dry run protection sensor or float switch in the well. Replace the bearings or the entire motor.

2. MPPT Controller Failure

Symptom: pump output drops 25 to 40 percent and stays low even on sunny days.

Cause: capacitor failure in the controller, often from heat or moisture in unsealed enclosures.

Fix: replace the controller. A quality MPPT unit runs $80 to $200 and is field swappable in 30 minutes.

3. Panel Output Decay

Symptom: pump worked great the first year, output declining steadily since.

Cause: panel soiling, partial shading from new tree growth, or actual panel degradation.

Fix: clean the panels twice a year, trim shade, replace any panels with broken cells. Measure open circuit voltage to confirm.

4. Sediment Damage

Symptom: grinding noise from the pump, output drops over weeks.

Cause: sand or silt entering the pump intake, wearing impellers or stator.

Fix: install a sand separator or move the pump higher in the well casing. Plastic impeller pumps usually need full replacement at this stage.

5. Cable Insulation Failure

Symptom: pump trips controller protection, will not restart even with full sun.

Cause: water intrusion into the splice between motor leads and underwater cable.

Fix: pull the pump and redo the splice with heat shrink and 3M Scotchcast resin. This is preventable on install with proper splice technique.

🔧 The Splice That Kills Pumps

A solar pump that will not start at all, even at noon with full panel voltage, sometimes has nothing wrong with the panels or controller. A common cause is water getting into the motor through a failed splice between the motor leads and the drop cable.

Vinyl electrical tape is not made for permanent underwater use and can fail within a couple of years, letting water corrode the windings and seize the bearings.

Underwater splices should be made with adhesive lined heat shrink, a resin splice kit such as 3M Scotchcast, or the manufacturer’s own splice kit. Any kit that says to splice with electrical tape is setting you up for an early failure.

Quick Recommendation Table

If you do not feel like reading the full reviews, find your situation here.

Your SituationBuy This Pump
Deep well over 300 ft, critical daily useGrundfos 10 SQFlex
Residential well 100 to 250 ft, family of 2 to 5PWS Solar Pump with MPPT
Off grid cabin or stock tank, well 150 to 230 ftBACOENG Solar Deep Well
Shallow well or garden irrigation, tight budgetEco-Worthy (upgrade the controller)
Livestock operation, 1,000+ gallons per daySHYLIYU 10 GPM Solar
Pond, rain barrel, surface water under 30 ft liftSolariver Solar Pump Kit

Frequently Asked Questions

How many solar panels do I need for a submersible pump?

Match the panel array wattage to the pump’s rated wattage at full load, then add 50 percent for losses. A 500 watt pump needs 750 watts of panel. In low sun regions, double the pump wattage in panels.

Do I need batteries with a solar submersible pump?

No, and most installations do not use them. The storage tank or cistern is your “battery” since it stores pumped water for use during dark hours. Add batteries only if you need to pump on demand at night.

Can a solar pump work without an MPPT controller?

It will run, but you will lose 25 to 30 percent of your daily output. An MPPT controller keeps the panels operating at their maximum power point under varying load. Treat it as required equipment, not optional.

How deep can a solar submersible pump go?

Helical rotor pumps like the Grundfos SQFlex can lift water from over 800 feet. Most centrifugal solar pumps top out between 200 and 350 feet of TDH. Anything deeper requires premium gear.

How long does a solar submersible pump last?

A quality brushless pump (Grundfos, PWS, SHYLIYU) runs 10 to 15 years with proper sizing and dry run protection. Budget pumps (Eco-Worthy, BACOENG) typically last 5 to 8 years. Brushed motor pumps under $100 last 1 to 3 years.

Can I use a solar pump to pressurize my house water?

Yes, but the architecture matters. Pump from the well into a pressure tank with a pump controller, or pump into a cistern and use a separate booster pump for house pressure. Direct house pressure from a solar pump is unreliable due to variable sun output.

What size pressure tank do I need with a solar pump?

If you are pressurizing the house from the well directly, follow the same sizing rules as in our pressure tank guide. If you are pumping into a cistern first, no pressure tank is needed at the well; the booster pump after the cistern uses its own.

Is a solar pump cheaper than running grid power?

The payback depends on grid extension cost. If utility power is already at your well, grid is usually cheaper. If you would pay $5,000 or more to bring power to the well, solar pays back inside 5 years.

Read Next

Related reading: our best solar pump controllers and our solar pump payback calculator.

Planning a new borehole for your solar pump? See my borehole drilling cost guide with real 2026 prices per metre and a free calculator.

Similar Posts

Leave a Reply

Your email address will not be published. Required fields are marked *
